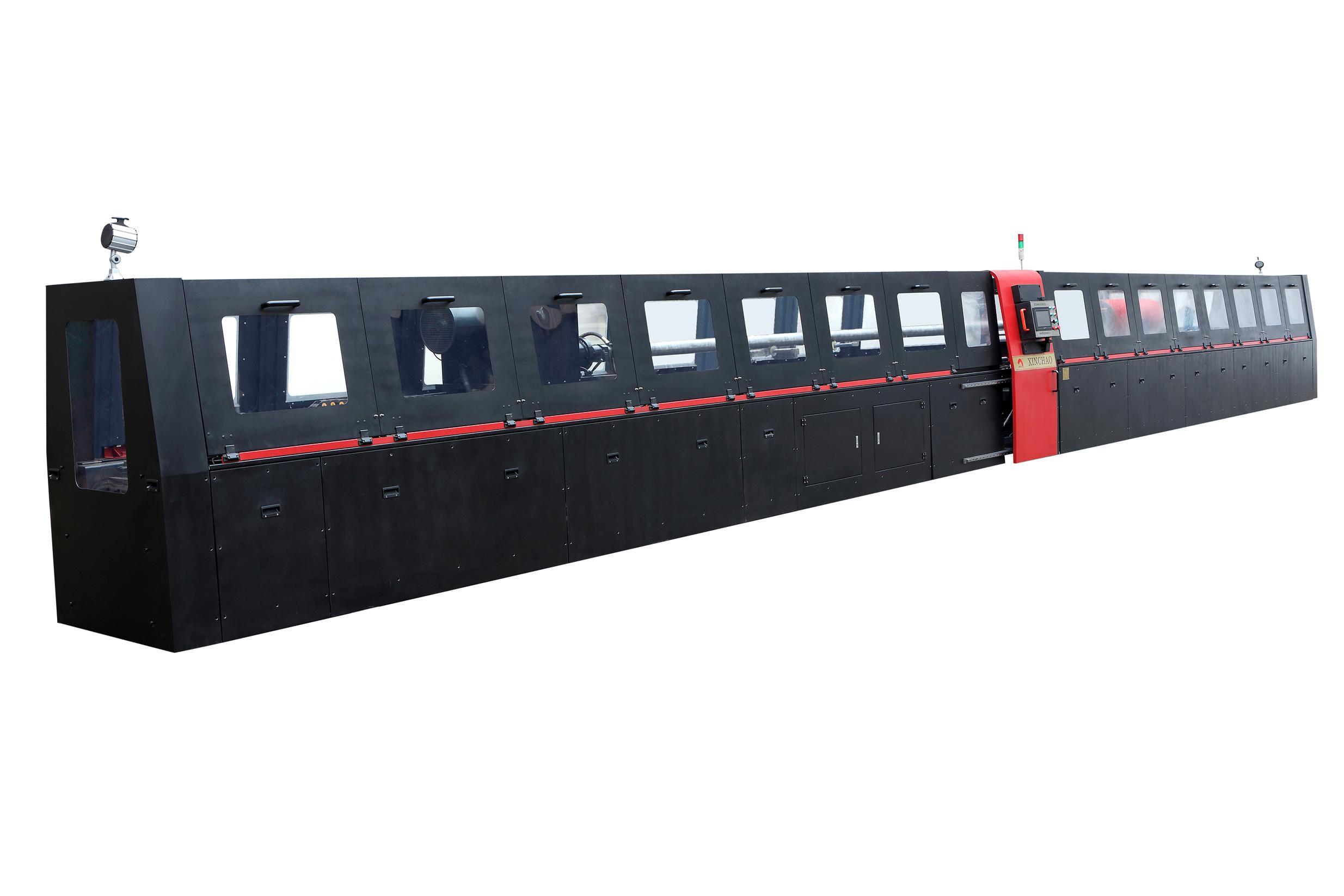

Deep hole honing machine
Release time：2017-08-11 Hitcount：183次
| TECHNICAL PARAMETERS | |
|---|---|
| Prodessing bore dinameter | φ30-1000mm |
| Processing length | 0.5-16m |
| The Stroke Rev |
15-350r/min Stepless speed transmission |
| Feed motor | 0.75kw speed redacer |
| Current | 380V 50HZ |
| Main shaft motor power |
5.5-11kw Stepless speed transmission |
| Reciprocating motor power | 3.5-5.5KW(Servo) |
Symbol of high-precision ,high-efficiency and high-performance
* Time needed for any processing circulation can be preset with timer on control panel. After every cirulation,the timer will reset to the preset time for the next circulation processing.
* Suitable for ideal main shafe rotation speed for any honing by setting the speed converter of main shaft.Electronic brake can be used to eliminate the hole wall scratching phenomena when honing is completed.
* All kinds of workpieces can be located precisely by adjusting clamp and fixed firmly.
* Touch screen can display honing time, times of reciprocation, reciprocation and set the size of hole. It is available to adjust the reciprocating position automatically and correct the shape of hole automatically to ensure the precision.
* 1.Main characteristics of cooling system:Level 5 filtration:Level 1 magnetic filtration,Level 2 grid and precipitation filtration,Level 2 filter core filtration. 2.Low-pressure supply of cooling liquid and it consists of internal spraying of liquid and external supply for workpiece.
